dHMI10 Display
Displays

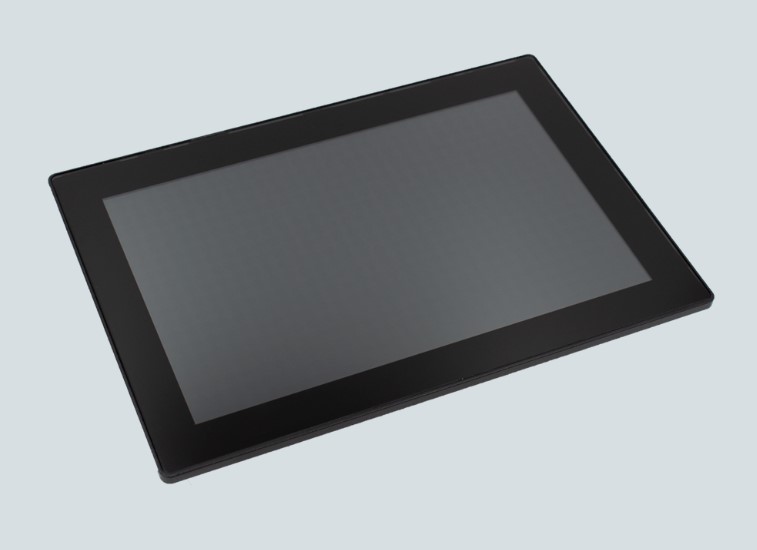

10.1″ Programmable Touchscreen Display
ABOUT dHMI10 Display (1890-00)
The new generation 10.1” Dasa Intelligent Display is designed towards the requirements and needs from professional mobile working machines. With the Dasa 10.1″ programmable display you are accessing the ultimate screen performance and power enabling your machine and its operator to reach their full potential and productivity.
The state-of-the-art IPS-panel provides a bright and crisp picture quality, with a wide viewing angle supporting also off-centre installations. In addition, the dHMI10/12 also serve as a real applications- and interface hub featuring high speed processor, large application memory and multiple ports.
IPS-panel with crisp and bright picture
Wide viewing angle supporting also off-centre installations
High speed processor
Large application memory

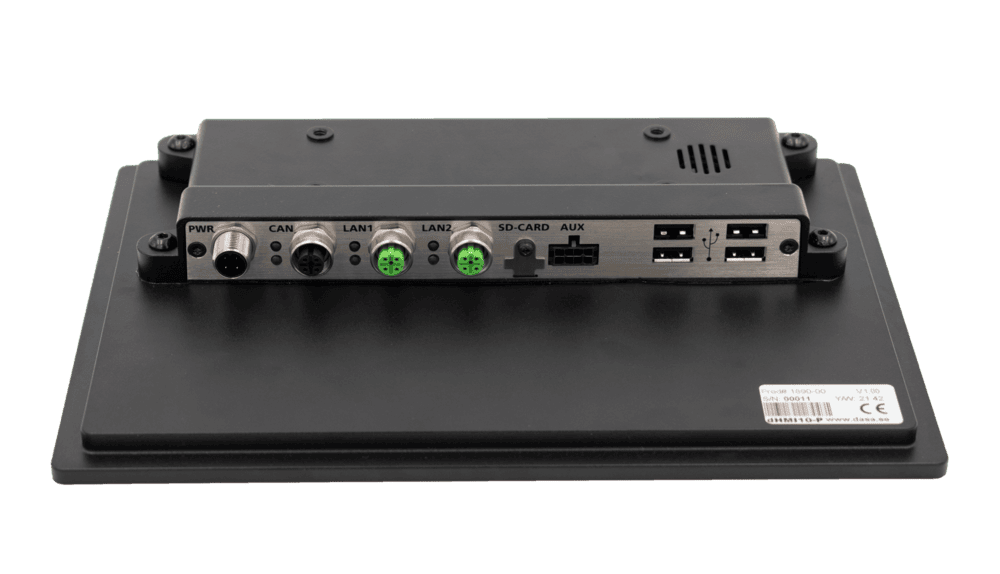

Multiple CAN and Ethernet ports
Touchscreen
Compact
Robust
Size: 10,1"
Resolution: 1280x800 pixels (16:10 wide)
Brightness: 1000 cd/m²
CPU: i.MX8X/4xA35@1.2GHz
Memory: 2GB RAM, 8GB Flash, 8GB Micro SD card
Power Supply: 10-30 VDC (with Ignition control)
Operating temperature: -30 to +70 °C
CAN: 2
Ethernet: 2x100 Mbit/s (switch)
