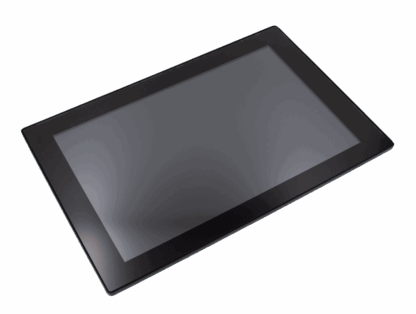

ABOUT dOP40HD Display (1131-00)
15″ HD Touchscreen PC display. Designed for forestry operations with very clear visibility and readability, also in direct sunlight.
HD Touchscreen
Designed for forestry operations
Clear visibility and readability, also in direct sunlight.
General:
Weight 2.55 kg (5.62 lbs)
Ambient temperature: operating – 30 to + 70 °C (–22 to +158 °F) storage– 40 to + 70 °C (–40 to +158 °F)
Protection class: IP30
Voltage supply: 10 – 30 V DC
Power consumption operating: 1.2 A (24 V DC and full background lighting)
Screen size: Widescreen 15.6"
Resolution: WXGA (1920×1080)
Contrast: 1:800
Brightness: 1200 cd/m²
Size: 395 × 244 × 43 mm (15.6 × 9.6 × 1.7 in)
Chassis construction: Aluminum housing
Connectors: 3 USB host, 1 USB slave, 1 DVI-D, 1 D-SUB
Speaker: Built-in stereo (2x2W)
Touchscreen: Projected capacitive multitouch
Dimming: Adjustable via software
