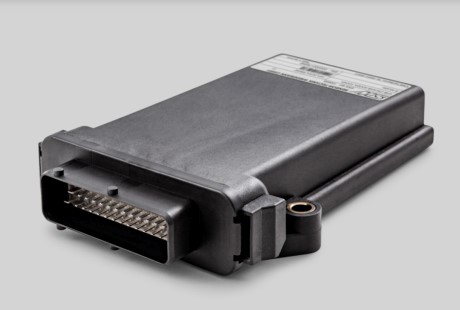

ESX 4CT Control Unit
Controllers
The ESX 4CT is a small compact and freely programmable control unit featuring the latest processor and input / output technologies. Compact size makes it possible to use for the automation of small machines and attachments.
ABOUT ESX 4CT Control Unit ()
A compact and freely programmable control unit featuring the latest processor and input / output technologies. With a the compact housing, it facilitates the automation of small machines and attachments and can also be used as a controller for dedicated tasks in more complex systems.
A range of different I/O configurations are available. The inputs can be configured for different functionalities and the half bridge outputs can also be used to drive PVG valves.
One core of the Aurix TC367 is used for application programming. Thanks to the platform concept, application code can be re-used across STW’s 4th controller generation.
Control specially designed for use in harsh mobile applications
Flexible programming in C, Matlab or IEC61131-3 (logi.CAD 3)
Suitable for safety-related applications up to PL b according to EN ISO 13849-1:2015
Security (HSM, Secure Boot, and Signed Firmware Update)
Pin-compliant to ESX.ioxp
Aurix TC367 dual core 32 bit, 300 MHz
Internal: 576 kB RAM, 4 MB Flash
External: EEPROM 32 kB (optional max. 284 kB)
2 (optional 3) CAN interfaces, CAN FD ready, ISOBUS ISO 11783-3, 1 RS232 (or optional 1 LIN Spec 2.2A )
Variants with 14, 18 or 22 inputs, SENT interface available for 2 input types
Variants with 13, 9 or 5 outputs, up to 8 half bridges supporting PVG valves
1 sensor supply 5 V ... 12 V, max. 250 mA
6-axis inertial measurement unit (IMU) (optional),
Bluetooth LE v5.1 with internal antenna (optional)
